📝 Exercise M4.01

In this exercise we investigate the stability of the k-means algorithm. For such purpose, we use the RFM Dataset. RFM is a method used for analyzing customer value and the acronym RFM stands for the three dimensions:

• Recency: How recently did the customer purchase;

• Frequency: How often do they purchase;

• Monetary Value: How much do they spend.

It is commonly used in marketing and has received particular attention in retail and professional services industries as well. Here we subsample the dataset to ease the calculations.

import pandas as pd

data = pd.read_csv("../datasets/rfm_segmentation.csv")
data = data.sample(n=2000, random_state=0).reset_index(drop=True)
data

	frequency	monetary	recency
0	1	164.69	657
1	1	259.09	408
2	3	383.68	53
3	1	594.00	247
4	7	1192.82	212
...	...	...	...
1995	13	3141.51	0
1996	14	3834.79	16
1997	13	6862.91	98
1998	3	758.82	22
1999	2	1840.32	87

2000 rows × 3 columns

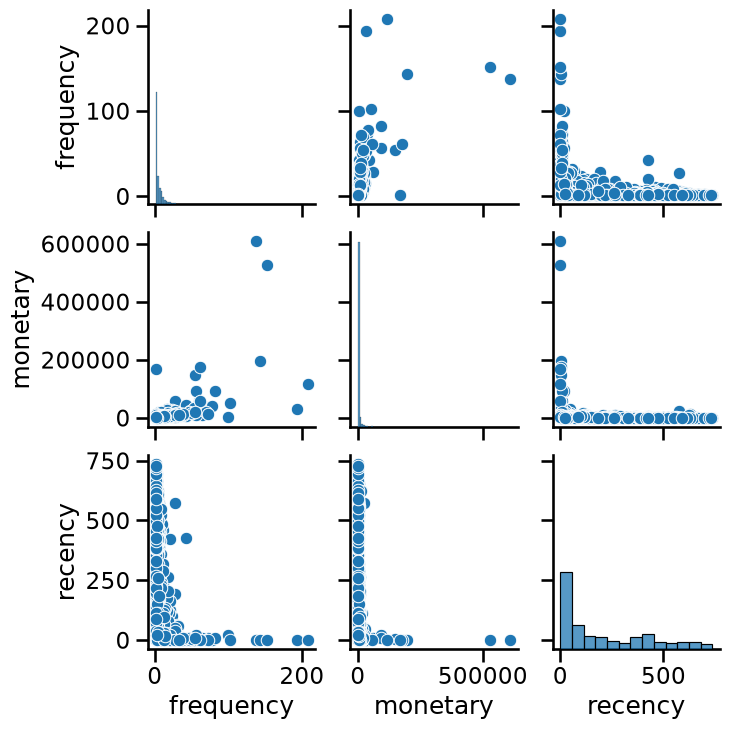

We can explore the data using a seaborn pairplot.

import seaborn as sns

_ = sns.pairplot(data)

As k-means clustering relies on computing distances between samples, in general we need to scale our data before training the clustering model.

Modify the color of the pairplot to represent the cluster labels as predicted by KMeans without any scaling. Try different values for n_clusters, for instance, n_clusters_values=[2, 3, 4]. Do all features contribute equally to forming the clusters in their original scale?

# Write your code here.

Create a pipeline composed by a StandardScaler followed by a KMeans step as the final predictor. Set the random_state of KMeans for reproducibility. Then, make a plot of the WCSS or inertia for n_clusters varying from 1 to 10. You can use the following helper function for such purpose:

import matplotlib.pyplot as plt
from sklearn.metrics import silhouette_score


def plot_n_clusters_scores(
    model,
    data,
    score_type="inertia",
    n_clusters_values=None,
    alpha=1.0,
    title=None,
):
    """
    Plots clustering scores (inertia or silhouette) for a range of n_clusters.

    Parameters:
        model: A pipeline whose last step has a `n_clusters` hyperparameter.
        data: The input data to cluster.
        score_type: "inertia" or "silhouette" to decide which score to compute.
        alpha: Transparency of the plot line, useful when several plots overlap.
        title: Optional title to set; default title used if None.
    """
    scores = []

    if n_clusters_values is None:
        if score_type == "inertia":
            n_clusters_values = range(1, 11)
        else:
            n_clusters_values = range(2, 11)

    for n_clusters in n_clusters_values:
        model[-1].set_params(n_clusters=n_clusters)
        if score_type == "inertia":
            ylabel = "WCSS (inertia)"
            model.fit(data)
            scores.append(model[-1].inertia_)
        elif score_type == "silhouette":
            ylabel = "Silhouette score"
            cluster_labels = model.fit_predict(data)
            data_transformed = model[:-1].transform(data)
            score = silhouette_score(data_transformed, cluster_labels)
            scores.append(score)
        else:
            raise ValueError(
                "score_type must be either 'inertia' or 'silhouette'"
            )

    plt.plot(n_clusters_values, scores, color="tab:blue", alpha=alpha)
    plt.xlabel("Number of clusters (n_clusters)")
    plt.ylabel(ylabel)
    _ = plt.title(title or f"{ylabel} for varying n_clusters", y=1.01)

# Write your code here.

Let’s see if we can find one or more stable candidates for n_clusters using the elbow method when resampling the dataset. For such purpose:

• Generate randomly resampled data consisting of 50% of the data by using train_test_split with train_size=0.5. Changing the random_state to do the split leads to different samples.

• Use the plot_n_clusters_scores function inside a for loop to make multiple overlapping plots of the inertia, each time using a different resampling. 10 resampling iterations should be enough to draw conclusions.

• You can choose to set the random_state value of the KMeans step, but be aware that even if we fix random_state=0 in all resampling iterations, k-means will still choose different initial centroids for different data samples, so fixing it or not should not change the conclusions w.r.t. to stability to resampling.

Is the elbow (optimal number of clusters) stable when resampling?

# Write your code here.

By default, KMeans uses a smart selection of the initial centroids called “k-means++”. Instead of picking points completely at random, it tries several candidate centroids at each step and picks the best ones based on an estimation of how much they would help reduce the overall inertia. This method improves the chances of finding better cluster centroids and speeds up convergence compared to random initialization.

Because “k-means++” already does a good job of finding suitable centroids, a single initialization is typically sufficient for most cases. That is why the parameter n_init in scikit-learn (which controls the number of times the algorithm is run with different centroid initializations) is set to 1 by default when init="k-means++". Nevertheless, there may be cases (as when data is unevenly distributed) where increasing n_init may help ensuring a global minimal inertia.

Repeat the previous example but setting n_init=5. Remember to fix the random_state for the KMeans initialization to only estimate the variability related to the resampling of the data. Are the resulting inertia curves more stable?

# Write your code here.

Repeat the experiment, but this time determine if the optimal number of clusters (with StandarScaler and n_init=5) is stable across subsamplings in terms of the silhouette_score. Be aware that computing the silhouette score is more computationally costly than computing the inertia.

# Write your code here.

Once again repeat the experiment to determine the stability of the optimal number of clusters. This time, instead of using a StandardScaler, use a QuantileTransformer with default parameters as the preprocessing step in the pipeline. Contrary to StandardScaler, QuantileTransformer is a nonlinear transformation that maps the features with a long tail distributions to a uniform distribution, which is the case for the “frequency” and “monetary” features in the RFM dataset.

For the KMeans step, keep n_init=5.

What happens in terms of silhouette score? Does this make it possible to identify stable and qualitatively interesting clusters in this data?

# Write your code here.
