# Build a classification decision tree#

We will illustrate how decision tree fit data with a simple classification problem using the penguins dataset.

Note

If you want a deeper overview regarding this dataset, you can refer to the Appendix - Datasets description section at the end of this MOOC.

```
import pandas as pd
penguins = pd.read_csv("../datasets/penguins_classification.csv")
culmen_columns = ["Culmen Length (mm)", "Culmen Depth (mm)"]
target_column = "Species"
```

Besides, we split the data into two subsets to investigate how trees will predict values based on an out-of-samples dataset.

```
from sklearn.model_selection import train_test_split
data, target = penguins[culmen_columns], penguins[target_column]
data_train, data_test, target_train, target_test = train_test_split(
data, target, random_state=0
)
```

In a previous notebook, we learnt that a linear classifier will define a linear separation to split classes using a linear combination of the input features. In our 2-dimensional space, it means that a linear classifier will define some oblique lines that best separate our classes. We define a function below that, given a set of data points and a classifier, will plot the decision boundaries learnt by the classifier.

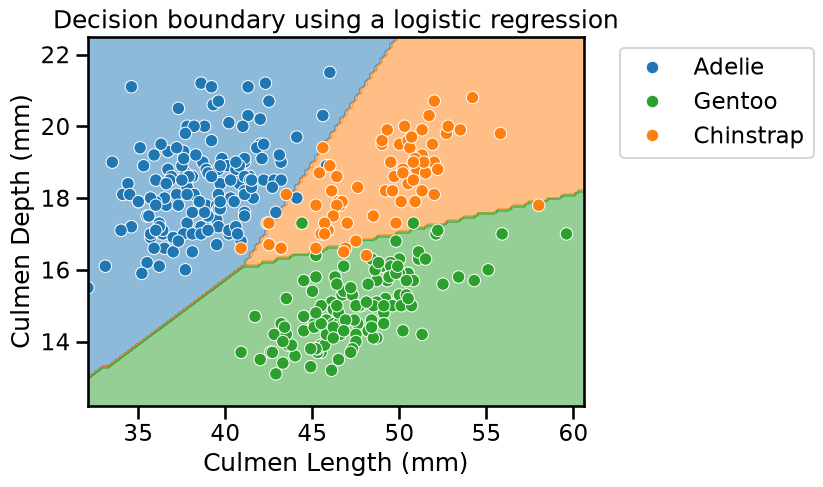

Thus, for a linear classifier, we will obtain the following decision boundaries. These boundaries lines indicate where the model changes its prediction from one class to another.

```
from sklearn.linear_model import LogisticRegression
linear_model = LogisticRegression()
linear_model.fit(data_train, target_train)
```

LogisticRegression()

**In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.**

On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

LogisticRegression()

```
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.inspection import DecisionBoundaryDisplay
# create a palette to be used in the scatterplot
palette = ["tab:red", "tab:blue", "black"]
DecisionBoundaryDisplay.from_estimator(
linear_model, data_train, response_method="predict", cmap="RdBu", alpha=0.5
)
sns.scatterplot(
data=penguins,
x=culmen_columns[0],
y=culmen_columns[1],
hue=target_column,
palette=palette,
)
# put the legend outside the plot
plt.legend(bbox_to_anchor=(1.05, 1), loc="upper left")
_ = plt.title("Decision boundary using a logistic regression")
```

```
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
```

We see that the lines are a combination of the input features since they are not perpendicular a specific axis. Indeed, this is due to the model parametrization that we saw in the previous notebook, controlled by the modelβs weights and intercept.

Besides, it seems that the linear model would be a good candidate for such problem as it gives good accuracy.

```
linear_model.fit(data_train, target_train)
test_score = linear_model.score(data_test, target_test)
print(f"Accuracy of the LogisticRegression: {test_score:.2f}")
```

```
Accuracy of the LogisticRegression: 0.98
```

Unlike linear models, decision trees are non-parametric models: they are not controlled by a mathematical decision function and do not have weights or intercept to be optimized.

Indeed, decision trees will partition the space by considering a single feature at a time. Letβs illustrate this behaviour by having a decision tree make a single split to partition the feature space.

```
from sklearn.tree import DecisionTreeClassifier
tree = DecisionTreeClassifier(max_depth=1)
tree.fit(data_train, target_train)
```

DecisionTreeClassifier(max_depth=1)

**In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.**

On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

DecisionTreeClassifier(max_depth=1)

```
DecisionBoundaryDisplay.from_estimator(
tree, data_train, response_method="predict", cmap="RdBu", alpha=0.5
)
sns.scatterplot(
data=penguins,
x=culmen_columns[0],
y=culmen_columns[1],
hue=target_column,
palette=palette,
)
plt.legend(bbox_to_anchor=(1.05, 1), loc="upper left")
_ = plt.title("Decision boundary using a decision tree")
```

```
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
/opt/hostedtoolcache/Python/3.9.18/x64/lib/python3.9/site-packages/seaborn/_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
if pd.api.types.is_categorical_dtype(vector):
```

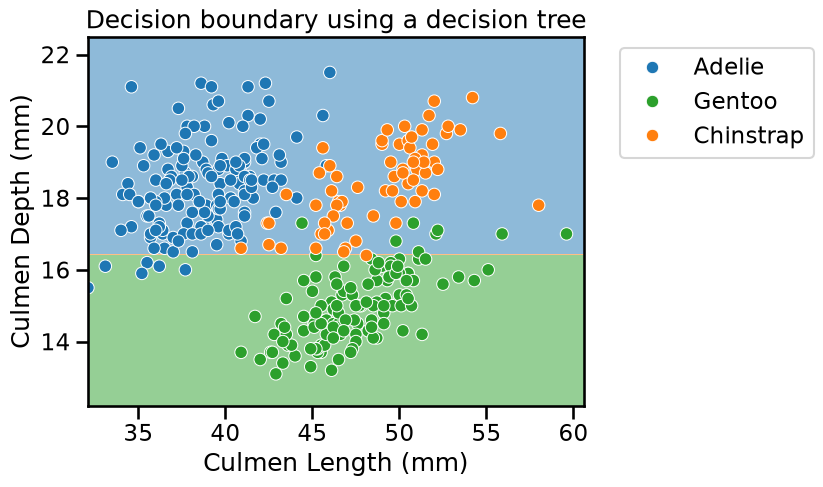

The partitions found by the algorithm separates the data along the axis βCulmen Depthβ, discarding the feature βCulmen Lengthβ. Thus, it highlights that a decision tree does not use a combination of feature when making a split. We can look more in depth at the tree structure.

```
from sklearn.tree import plot_tree
_, ax = plt.subplots(figsize=(8, 6))
_ = plot_tree(
tree,
feature_names=culmen_columns,
class_names=tree.classes_.tolist(),
impurity=False,
ax=ax,
)
```

Tip

We are using the function `fig, ax = plt.subplots(figsize=(8, 6))`

to create
a figure and an axis with a specific size. Then, we can pass the axis to the
`sklearn.tree.plot_tree`

function such that the drawing happens in this axis.

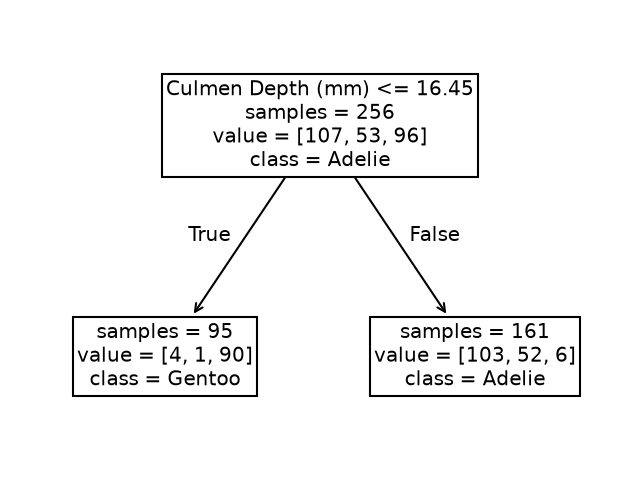

We see that the split was done on the culmen depth feature. The original dataset was subdivided into 2 sets based on the culmen depth (inferior or superior to 16.45 mm).

This partition of the dataset minimizes the class diversities in each
sub-partitions. This measure is also known as a **criterion**, and is a
settable parameter.

If we look more closely at the partition, we see that the sample superior to 16.45 belongs mainly to the Adelie class. Looking at the values, we indeed observe 103 Adelie individuals in this space. We also count 52 Chinstrap samples and 6 Gentoo samples. We can make similar interpretation for the partition defined by a threshold inferior to 16.45mm. In this case, the most represented class is the Gentoo species.

Letβs see how our tree would work as a predictor. Letβs start with a case where the culmen depth is inferior to the threshold.

```
sample_1 = pd.DataFrame({"Culmen Length (mm)": [0], "Culmen Depth (mm)": [15]})
tree.predict(sample_1)
```

```
array(['Gentoo'], dtype=object)
```

The class predicted is the Gentoo. We can now check what happens if we pass a culmen depth superior to the threshold.

```
sample_2 = pd.DataFrame({"Culmen Length (mm)": [0], "Culmen Depth (mm)": [17]})
tree.predict(sample_2)
```

```
array(['Adelie'], dtype=object)
```

In this case, the tree predicts the Adelie specie.

Thus, we can conclude that a decision tree classifier will predict the most represented class within a partition.

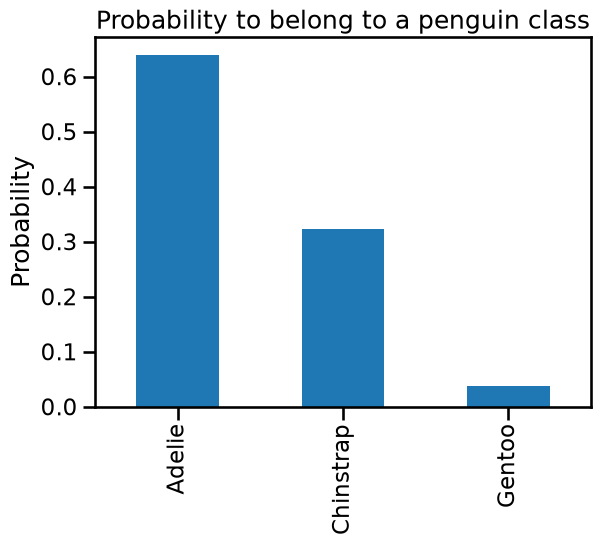

During the training, we have a count of samples in each partition, we can also compute the probability of belonging to a specific class within this partition.

```
y_pred_proba = tree.predict_proba(sample_2)
y_proba_class_0 = pd.Series(y_pred_proba[0], index=tree.classes_)
```

```
y_proba_class_0.plot.bar()
plt.ylabel("Probability")
_ = plt.title("Probability to belong to a penguin class")
```

We can also compute the different probabilities manually directly from the tree structure.

```
adelie_proba = 103 / 161
chinstrap_proba = 52 / 161
gentoo_proba = 6 / 161
print(
"Probabilities for the different classes:\n"
f"Adelie: {adelie_proba:.3f}\n"
f"Chinstrap: {chinstrap_proba:.3f}\n"
f"Gentoo: {gentoo_proba:.3f}\n"
)
```

```
Probabilities for the different classes:
Adelie: 0.640
Chinstrap: 0.323
Gentoo: 0.037
```

It is also important to note that the culmen length has been disregarded for the moment. It means that whatever the value given, it will not be used during the prediction.

```
sample_3 = pd.DataFrame(
{"Culmen Length (mm)": [10_000], "Culmen Depth (mm)": [17]}
)
tree.predict_proba(sample_3)
```

```
array([[0.63975155, 0.32298137, 0.03726708]])
```

Going back to our classification problem, the split found with a maximum depth of 1 is not powerful enough to separate the three species and the model accuracy is low when compared to the linear model.

```
tree.fit(data_train, target_train)
test_score = tree.score(data_test, target_test)
print(f"Accuracy of the DecisionTreeClassifier: {test_score:.2f}")
```

```
Accuracy of the DecisionTreeClassifier: 0.78
```

Indeed, it is not a surprise. We saw earlier that a single feature will not be able to separate all three species. However, from the previous analysis we saw that by using both features we should be able to get fairly good results.

In the next exercise, you will increase the size of the tree depth. You will get intuitions on how the space partitioning is repeated over time.
