Preprocessing for numerical featuresΒΆ

In this notebook, we will still use only numerical features.

We will introduce these new aspects:

  • an example of preprocessing, namely scaling numerical variables;

  • using a scikit-learn pipeline to chain preprocessing and model training;

  • assessing the generalization performance of our model via cross-validation instead of a single train-test split.

Data preparationΒΆ

First, let’s load the full adult census dataset.

import pandas as pd

adult_census = pd.read_csv("../datasets/adult-census.csv")
# to display nice model diagram
from sklearn import set_config

We will now drop the target from the data we will use to train our predictive model.

target_name = "class"
target = adult_census[target_name]
data = adult_census.drop(columns=target_name)

Then, we select only the numerical columns, as seen in the previous notebook.

numerical_columns = [
    "age", "capital-gain", "capital-loss", "hours-per-week"]

data_numeric = data[numerical_columns]

Finally, we can divide our dataset into a train and test sets.

from sklearn.model_selection import train_test_split

data_train, data_test, target_train, target_test = train_test_split(
    data_numeric, target, random_state=42)

Model fitting with preprocessingΒΆ

A range of preprocessing algorithms in scikit-learn allow us to transform the input data before training a model. In our case, we will standardize the data and then train a new logistic regression model on that new version of the dataset.

Let’s start by printing some statistics about the training data.

age capital-gain capital-loss hours-per-week
count 36631.000000 36631.000000 36631.000000 36631.000000
mean 38.642352 1087.077721 89.665311 40.431247
std 13.725748 7522.692939 407.110175 12.423952
min 17.000000 0.000000 0.000000 1.000000
25% 28.000000 0.000000 0.000000 40.000000
50% 37.000000 0.000000 0.000000 40.000000
75% 48.000000 0.000000 0.000000 45.000000
max 90.000000 99999.000000 4356.000000 99.000000

We see that the dataset’s features span across different ranges. Some algorithms make some assumptions regarding the feature distributions and usually normalizing features will be helpful to address these assumptions.


Here are some reasons for scaling features:

  • Models that rely on the distance between a pair of samples, for instance k-nearest neighbors, should be trained on normalized features to make each feature contribute approximately equally to the distance computations.

  • Many models such as logistic regression use a numerical solver (based on gradient descent) to find their optimal parameters. This solver converges faster when the features are scaled.

Whether or not a machine learning model requires scaling the features depends on the model family. Linear models such as logistic regression generally benefit from scaling the features while other models such as decision trees do not need such preprocessing (but will not suffer from it).

We show how to apply such normalization using a scikit-learn transformer called StandardScaler. This transformer shifts and scales each feature individually so that they all have a 0-mean and a unit standard deviation.

We will investigate different steps used in scikit-learn to achieve such a transformation of the data.

First, one needs to call the method fit in order to learn the scaling from the data.

from sklearn.preprocessing import StandardScaler

scaler = StandardScaler()

The fit method for transformers is similar to the fit method for predictors. The main difference is that the former has a single argument (the data matrix), whereas the latter has two arguments (the data matrix and the target).

Transformer fit diagram

In this case, the algorithm needs to compute the mean and standard deviation for each feature and store them into some NumPy arrays. Here, these statistics are the model states.


The fact that the model states of this scaler are arrays of means and standard deviations is specific to the StandardScaler. Other scikit-learn transformers will compute different statistics and store them as model states, in the same fashion.

We can inspect the computed means and standard deviations.

array([  38.64235211, 1087.07772106,   89.6653108 ,   40.43124676])
array([  13.72556083, 7522.59025606,  407.10461772,   12.42378265])


scikit-learn convention: if an attribute is learned from the data, its name ends with an underscore (i.e. _), as in mean_ and scale_ for the StandardScaler.

Scaling the data is applied to each feature individually (i.e. each column in the data matrix). For each feature, we subtract its mean and divide by its standard deviation.

Once we have called the fit method, we can perform data transformation by calling the method transform.

data_train_scaled = scaler.transform(data_train)
array([[ 0.17177061, -0.14450843,  5.71188483, -2.28845333],
       [ 0.02605707, -0.14450843, -0.22025127, -0.27618374],
       [-0.33822677, -0.14450843, -0.22025127,  0.77019645],
       [-0.77536738, -0.14450843, -0.22025127, -0.03471139],
       [ 0.53605445, -0.14450843, -0.22025127, -0.03471139],
       [ 1.48319243, -0.14450843, -0.22025127, -2.69090725]])

Let’s illustrate the internal mechanism of the transform method and put it to perspective with what we already saw with predictors.

Transformer transform diagram

The transform method for transformers is similar to the predict method for predictors. It uses a predefined function, called a transformation function, and uses the model states and the input data. However, instead of outputting predictions, the job of the transform method is to output a transformed version of the input data.

Finally, the method fit_transform is a shorthand method to call successively fit and then transform.

Transformer fit_transform diagram

data_train_scaled = scaler.fit_transform(data_train)
array([[ 0.17177061, -0.14450843,  5.71188483, -2.28845333],
       [ 0.02605707, -0.14450843, -0.22025127, -0.27618374],
       [-0.33822677, -0.14450843, -0.22025127,  0.77019645],
       [-0.77536738, -0.14450843, -0.22025127, -0.03471139],
       [ 0.53605445, -0.14450843, -0.22025127, -0.03471139],
       [ 1.48319243, -0.14450843, -0.22025127, -2.69090725]])
data_train_scaled = pd.DataFrame(data_train_scaled,
age capital-gain capital-loss hours-per-week
count 3.663100e+04 3.663100e+04 3.663100e+04 3.663100e+04
mean -2.273364e-16 3.530310e-17 3.840667e-17 1.844684e-16
std 1.000014e+00 1.000014e+00 1.000014e+00 1.000014e+00
min -1.576792e+00 -1.445084e-01 -2.202513e-01 -3.173852e+00
25% -7.753674e-01 -1.445084e-01 -2.202513e-01 -3.471139e-02
50% -1.196565e-01 -1.445084e-01 -2.202513e-01 -3.471139e-02
75% 6.817680e-01 -1.445084e-01 -2.202513e-01 3.677425e-01
max 3.741752e+00 1.314865e+01 1.047970e+01 4.714245e+00

Notice that the mean of all the columns is close to 0 and the standard deviation in all cases is close to 1. We can also visualize the effect of StandardScaler using a jointplot to show both the histograms of the distributions and a scatterplot of any pair of numerical features at the same time. We can observe that StandardScaler does not change the structure of the data itself but the axes get shifted and scaled.

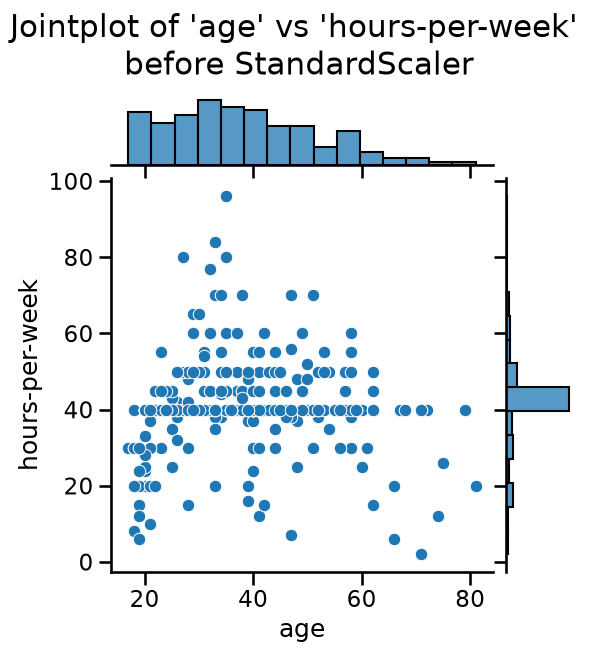

import matplotlib.pyplot  as plt
import seaborn as sns

# number of points to visualize to have a clearer plot
num_points_to_plot = 300

sns.jointplot(data=data_train[:num_points_to_plot], x="age",
              y="hours-per-week", marginal_kws=dict(bins=15))
plt.suptitle("Jointplot of 'age' vs 'hours-per-week' \nbefore StandardScaler", y=1.1)

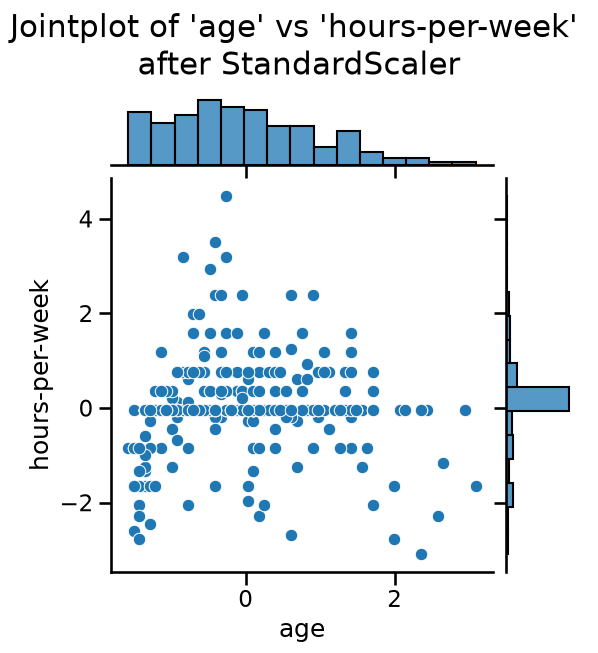

sns.jointplot(data=data_train_scaled[:num_points_to_plot], x="age",
              y="hours-per-week", marginal_kws=dict(bins=15))
_ = plt.suptitle("Jointplot of 'age' vs 'hours-per-week' \nafter StandardScaler", y=1.1)
../_images/02_numerical_pipeline_scaling_24_0.png ../_images/02_numerical_pipeline_scaling_24_1.png

We can easily combine sequential operations with a scikit-learn Pipeline, which chains together operations and is used as any other classifier or regressor. The helper function make_pipeline will create a Pipeline: it takes as arguments the successive transformations to perform, followed by the classifier or regressor model.

import time
from sklearn.linear_model import LogisticRegression
from sklearn.pipeline import make_pipeline

model = make_pipeline(StandardScaler(), LogisticRegression())
Pipeline(steps=[('standardscaler', StandardScaler()),
                ('logisticregression', LogisticRegression())])

The make_pipeline function did not require us to give a name to each step. Indeed, it was automatically assigned based on the name of the classes provided; a StandardScaler will be a step named "standardscaler" in the resulting pipeline. We can check the name of each steps of our model:

{'standardscaler': StandardScaler(),
 'logisticregression': LogisticRegression()}

This predictive pipeline exposes the same methods as the final predictor: fit and predict (and additionally predict_proba, decision_function, or score).

start = time.time(), target_train)
elapsed_time = time.time() - start

We can represent the internal mechanism of a pipeline when calling fit by the following diagram:

pipeline fit diagram

When calling, the method fit_transform from each underlying transformer (here a single transformer) in the pipeline will be called to:

  • learn their internal model states

  • transform the training data. Finally, the preprocessed data are provided to train the predictor.

To predict the targets given a test set, one uses the predict method.

predicted_target = model.predict(data_test)
array([' <=50K', ' <=50K', ' >50K', ' <=50K', ' <=50K'], dtype=object)

Let’s show the underlying mechanism:

pipeline predict diagram

The method transform of each transformer (here a single transformer) is called to preprocess the data. Note that there is no need to call the fit method for these transformers because we are using the internal model states computed when calling The preprocessed data is then provided to the predictor that will output the predicted target by calling its method predict.

As a shorthand, we can check the score of the full predictive pipeline calling the method model.score. Thus, let’s check the computational and generalization performance of such a predictive pipeline.

model_name = model.__class__.__name__
score = model.score(data_test, target_test)
print(f"The accuracy using a {model_name} is {score:.3f} "
      f"with a fitting time of {elapsed_time:.3f} seconds "
      f"in {model[-1].n_iter_[0]} iterations")
The accuracy using a Pipeline is 0.807 with a fitting time of 0.094 seconds in 12 iterations

We could compare this predictive model with the predictive model used in the previous notebook which did not scale features.

model = LogisticRegression()
start = time.time(), target_train)
elapsed_time = time.time() - start
model_name = model.__class__.__name__
score = model.score(data_test, target_test)
print(f"The accuracy using a {model_name} is {score:.3f} "
      f"with a fitting time of {elapsed_time:.3f} seconds "
      f"in {model.n_iter_[0]} iterations")
The accuracy using a LogisticRegression is 0.807 with a fitting time of 0.211 seconds in 59 iterations

We see that scaling the data before training the logistic regression was beneficial in terms of computational performance. Indeed, the number of iterations decreased as well as the training time. The generalization performance did not change since both models converged.


Working with non-scaled data will potentially force the algorithm to iterate more as we showed in the example above. There is also the catastrophic scenario where the number of required iterations are more than the maximum number of iterations allowed by the predictor (controlled by the max_iter) parameter. Therefore, before increasing max_iter, make sure that the data are well scaled.

Model evaluation using cross-validationΒΆ

In the previous example, we split the original data into a training set and a testing set. The score of a model will in general depend on the way we make such a split. One downside of doing a single split is that it does not give any information about this variability. Another downside, in a setting where the amount of data is small, is that the the data available for training and testing will be even smaller after splitting.

Instead, we can use cross-validation. Cross-validation consists of repeating the procedure such that the training and testing sets are different each time. Generalization performance metrics are collected for each repetition and then aggregated. As a result we can get an estimate of the variability of the model’s generalization performance.

Note that there exists several cross-validation strategies, each of them defines how to repeat the fit/score procedure. In this section, we will use the K-fold strategy: the entire dataset is split into K partitions. The fit/score procedure is repeated K times where at each iteration K - 1 partitions are used to fit the model and 1 partition is used to score. The figure below illustrates this K-fold strategy.

Cross-validation diagram


This figure shows the particular case of K-fold cross-validation strategy. As mentioned earlier, there are a variety of different cross-validation strategies. Some of these aspects will be covered in more details in future notebooks.

For each cross-validation split, the procedure trains a model on all the red samples and evaluate the score of the model on the blue samples. Cross-validation is therefore computationally intensive because it requires training several models instead of one.

In scikit-learn, the function cross_validate allows to do cross-validation and you need to pass it the model, the data, and the target. Since there exists several cross-validation strategies, cross_validate takes a parameter cv which defines the splitting strategy.

from sklearn.model_selection import cross_validate

model = make_pipeline(StandardScaler(), LogisticRegression())
cv_result = cross_validate(model, data_numeric, target, cv=5)
CPU times: user 1.01 s, sys: 300 ms, total: 1.31 s
Wall time: 686 ms
{'fit_time': array([0.09947348, 0.10267353, 0.10435319, 0.09859276, 0.09749627]),
 'score_time': array([0.02080703, 0.02168918, 0.02666163, 0.02029109, 0.01948094]),
 'test_score': array([0.79557785, 0.80049135, 0.79965192, 0.79873055, 0.80436118])}

The output of cross_validate is a Python dictionary, which by default contains three entries: (i) the time to train the model on the training data for each fold, (ii) the time to predict with the model on the testing data for each fold, and (iii) the default score on the testing data for each fold.

Setting cv=5 created 5 distinct splits to get 5 variations for the training and testing sets. Each training set is used to fit one model which is then scored on the matching test set. This strategy is called K-fold cross-validation where K corresponds to the number of splits.

Note that by default the cross_validate function discards the 5 models that were trained on the different overlapping subset of the dataset. The goal of cross-validation is not to train a model, but rather to estimate approximately the generalization performance of a model that would have been trained to the full training set, along with an estimate of the variability (uncertainty on the generalization accuracy).

You can pass additional parameters to cross_validate to get more information, for instance training scores. These features will be covered in a future notebook.

Let’s extract the test scores from the cv_result dictionary and compute the mean accuracy and the variation of the accuracy across folds.

scores = cv_result["test_score"]
print("The mean cross-validation accuracy is: "
      f"{scores.mean():.3f} +/- {scores.std():.3f}")
The mean cross-validation accuracy is: 0.800 +/- 0.003

Note that by computing the standard-deviation of the cross-validation scores, we can estimate the uncertainty of our model generalization performance. This is the main advantage of cross-validation and can be crucial in practice, for example when comparing different models to figure out whether one is better than the other or whether the generalization performance differences are within the uncertainty.

In this particular case, only the first 2 decimals seem to be trustworthy. If you go up in this notebook, you can check that the performance we get with cross-validation is compatible with the one from a single train-test split.

In this notebook we have:

  • seen the importance of scaling numerical variables;

  • used a pipeline to chain scaling and logistic regression training;

  • assessed the generalization performance of our model via cross-validation.
